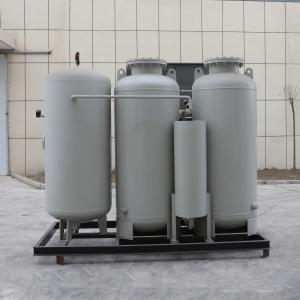

Indoor And Outdoor PSA oxygen Generator 380V High Safety Low Power Consumption

Product Categories

N2 Nitrogen Generator [22]
PSA Nitrogen Generator [10]
Nitrogen Gas Generator [29]
Industrial Oxygen Generator [30]
Liquid Nitrogen Generator [25]
Oxygen Generator System [38]
Medical Oxygen Generator [4]
Gas Purification Unit [1]
Mobile Nitrogen Generator [12]
Modular Oxygen Generator [15]
Centralised Oxygen Supply System [10]
PSA Hydrogen Generator [10]
Cryogenic Air Separation [15]
Liquid Nitrogen Tank [1]

Henan Junfang Machinery Equipment Co., Ltd

Contact Now

Indoor And Outdoor PSA oxygen Generator 380V High Safety Low Power Consumption

Name: Indoor And Outdoor PSA oxygen Generator 380V High Safety Low Power Consumption
Brand: JUNFANG
Price: 1 USD

Brand Name : JUNFANG

Model Number : JFO-200

Certification : CE/ISO

Place of Origin : Henan, China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7-20 work days

Name : Oxygen Generator System

Oxygen purity : 93%±2%

Dew point : ≤-40℃

Extract gas state : gaseous state

Principle : Compression

Oxygen pressure : 0-0.5Mpa

Customized service : Yes

Voltage frequency : 380V220V50HZ

Contact Now

Product Description

Indoor And Outdoor PSA oxygen Generator 380V High Safety Low Power Consumption

The PSA oxygene generator

Pressure swing adsorption (PSA) oxygen generator taks sodium molecular sieve as adsorbent, utilizes the selective adsorption characteristics of molecular sieve, adopts the cycle period of air compressor pressure adsorption and atmospheric desorption to make compressed air alternately enter the adsorption tower to realize air separation, thus continuously producing high-purity oxygen products. PSA process is a simple oxygen
generation method, the raw material is air and power consumption is only the power consumed by air compressor. It has the
advantages of low operating cost and high efficiency.

Product Paramenters

Product number	3-200 Specific specifications are as follows
Gas production m³/h	3-200 Specific specifications are as follows
Oxygen concentration /%	93±3
Power 220V Power/Kw	0.2/0.5
Air loss factor	13.5
Oxygen pressure /Mpa	0.4±0.1

Details Images

PSA technique (Pressure Swing Adsorption, PSA for short)

It's a kind of advanced gas separation technology, based on physical adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration, is the PSA cycle.

Process component introduction	brief description	function Introduction
air compressor	compressor pressure adsorption and atmospheric desorption	utilizes the selective adsorption characteristics of molecular sieve, adopts the cycle period of air compressor pressure adsorption and atmospheric desorption
air purification system	Air drying filtration	make compressed air alternately enter the adsorption tower to realize air separation, thus continuously producing high-purity oxygen products.
PSA oxygen generator system	oxygen generation	PSA process is a simple oxygen generation method, the raw material is air and power consumption is only the power consumed by air compressor.

Application

Application area

* Medical oxygen generator is a commonly used oxygen source equipment in hospital center oxygen supply system

* Plateau areas, supply breathing

* Wastewater and sewage treatment——The use of microorganisms to treat sewage and waste water through oxygenation and enhancement of microbial activity.

* Oxygen can be used as an accelerant to promote combustion

* aquaculture industry——By increasing the amount of oxygen in the fish pond, the fish can eat more and grow rapidly.

* Chemical manufacturing——Can be used to make chemical products, such as drugs, dyes, explosives and so on

* Cutting and welding——Oxygen can be used as an accelerant with acetylene, propane and other flammable gases, can produce more than 3000 degrees of temperature, to achieve welding, cutting metal role.

* Indoor aeration and outdoor work and sports

Application area	Application introduction
metallurgical industry	Electric arc furnace steelmaking, blast furnace ironmaking oxygen rich, hard furnace oxygen rich combustion
nonferrous metallurgy	Lead smelting, copper smelting, zinc smelting, aluminum smelting, all kinds of furnace rich in oxygen
environmental protection industry	Drinking water treatment, wastewater treatment, pulp drift, sewage biochemical treatment
chemical industry	Various oxidation reactions, ozone production, coal gasification
healthcare industry	Oxygen apparatus, oxygen therapy, physical health care
fishery industry	Seawater and freshwater aquaculture
Other industries	Fermentation, cutting, glass furnace, air conditioning, waste incineration, aerospace, homework, etc

Company Profile

Henan Junfang Machinery Equipment Co., Ltd.

Henan Junfang Mechanical Equipment Co., Ltd., founded in 2008. Its main products include nitrogen generator, oxygen generator,ammonia decomposition hydrogen production, and PSA technology applied to gas manufacturing equipment. The company has a professional R&D and technical team.

Professional technical support is the driving force for the company's sustainable development. On the one hand, we summarized in practice, found problems, improved technology and improved technology through communication between technicians and customers. At the same time, pay attention to the development of industry technology and learn new technologies. We also communicate with advanced enterprises in the world. We cooperate with advanced Japanese food companies to jointly break through the application of nitrogen in production. We also provide equipment for Samsung enterprises in South Korea. We have also cooperated with many university research offices in China to improve our technology.

We provide customers with first-class services. At the beginning of sales, we will communicate with customers in detail to fully understand their needs and specific requirements. According to the customer's requirements and the specific actual situation in production and use, we will make customized plans for customers. We will provide installation guidance services for customers and send technicians to install on site. During the use process, the customer will be trained and told the details and problems that need attention. We will regularly communicate with customers about their use and help them solve their subsequent use problems.

Reliable and stable quality is the foundation of the company. In the process of design and production, we strictly install the
production process and inspect every production process. At the same time, all products must undergo strict testing and a full set of program testing after the completion of production. Only after they are stable can they reach the standard. At the same time, we also pay close attention to the details. We will pay close attention to the accessories of the product and the test and installation of the accessories. When delivering goods, we will also pay attention to the problem that the packaging is already in transit. Ensure that customers receive our reliable and stable products.

Why Choose Us

Our sevices

Price-Factory provides directly for complete generating system, price is very competitive and reliable.
Flexibility – We can provide the most suitable solution according to the specific actual requirements of end user. Our technical team has more than 20 years experience in this filed. Reliable payment terms to keep your money more safe.Well-trained engineers offer any technical support for after-sales.

Packing & Delivery

Transportation

Every pyocess of our packing is very strict.

Just to better deliver the goods to your hands .

Type of shipping

Our transportation mode is mainly sea, and the
main shipping ports are Shanghai Port and Ningbo Port. If you have any other questions, please contact us in time

FAQ

1. who are we?
We are based in Henan, China, start from 2021,sell to North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Eastern
Asia(10.00%),Western Europe(10.00%),Central America(10.00%),Northern Europe(5.00%),Southern Europe(5.00%),Southeast Asia(3.00%).
There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Nitrogen Generator,Oxygen generator,PSA generator,PSA oxygen generator,PSA

4. why should you buy from us not from other suppliers?
The company has a professional R&D and technical team.Professional technical support is the driving force for the company's sustainable development.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
